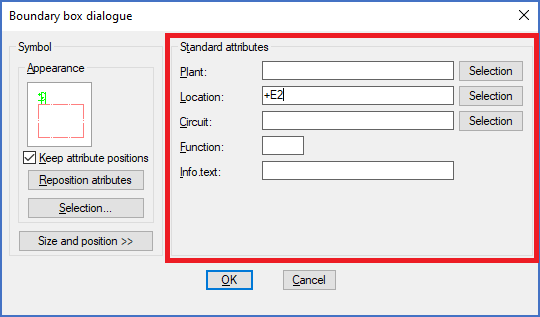

The Standard attributes section contains five fields. Those fields are listed below, each with a link to a separate sub-topic with a description of the respective field.



Please note here that Plant refers to the function aspect as defined by IEC1346. Circuit, in the same way, normally refers to the product aspect. The Function field is not used for the function aspect. All details about these fields are explained in the sub-topics that are listed below.



•Plant (the "function aspect")

•Location (the "location aspect")

•Circuit (the "product aspect")

•Function (not the "function aspect")

•Info.text
