Boundary box

<< Click to Display Table of Contents >>

Navigation:  Drawing Environment > Symbol Insert Tool > Buttons, controls and views > Resource category view > a-f: Symbol macros > c Miscellaneous >

Boundary box

Previous pageReturn to chapter overviewNext page

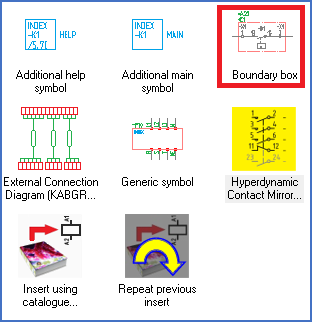

Figure 827:  The "Boundary box" command

Figure 827:  The "Boundary box" command



A Boundary box defines an area of a circuit diagram where function (plant), location, and/or product (circuit) differs from the rest of the same sheet, which means that it differs from what is specified in the drawing frame, in most cases in the upper left corner. An example of such a Boundary box is shown in the figure below.

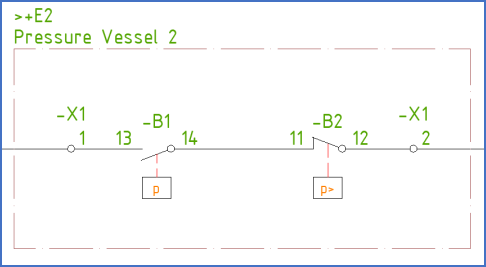

Figure 828:  A boundary box in a circuit diagram

Figure 828:  A boundary box in a circuit diagram



The description of boundary boxes in general and the commands that you use to handle them, is divided in the sub-topics that are listed below.



Boundary box background

The Boundary box macro

Edit boundary boxes

Non-rectangular boundary boxes
