Figure 847: The "Info.text" field is used to explain the content of the other fields.
The information text attribute is extremely useful, and you are encouraged to utilise its potential as much as possible. The purpose of this field is to explain in plain language, what the boundary box is symbolising. A cryptic location designation, like +S1, may not mean very much to the reader if an explanation is not provided. A short text, like "Control cabinet 1" could clarify the matter and be of great help.
The information text will automatically be placed below the actual designations above the upper left corner of the boundary box, as shown in the figure below.

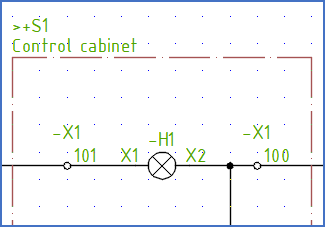

Figure 848: The "Information text" is automatically positioned below the actual designations.
