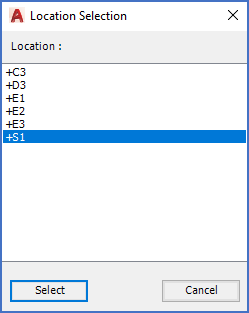

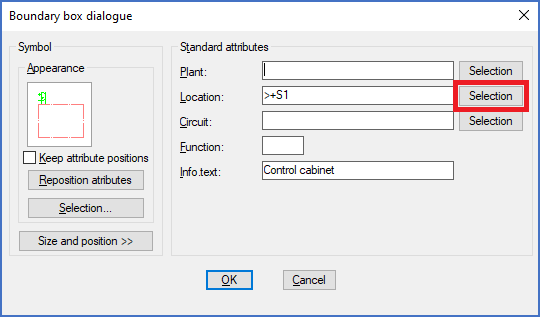

If you click the Selection button directly to the right of the Location field, as shown in the figure above, a Location Selection dialogue like shown in the figure below will be displayed. In that dialogue, all existing location designations in the current project will be listed, so that you can select one of them.





After you have selected the desired location designation, you confirm your choice with the Select button.



If you cannot find the location designation that you are looking for, it does not yet exist. You will then have to exit the dialogue using the Cancel button, and then type the desired designation manually instead.



Selecting the location designation rather that typing it, may reduce the risk of misspellings, and also potentially save a few key strokes.
