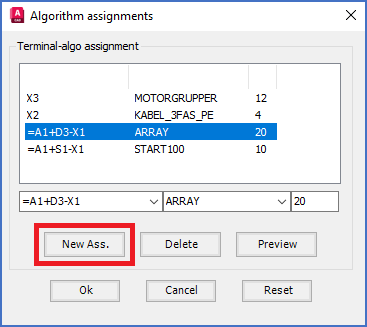

Figure 1347: The "New Assignment" button
To insert a new row in the table, you click the New Ass. button, as shown in the figure above.

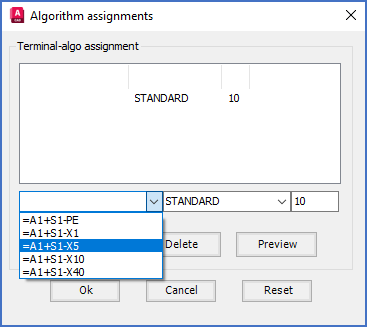

Figure 1348: Selection of Terminal Group Name
You will then enter an "editing mode" for that new line, where you are supposed to define "terminal group name", "Numbering algorithm name", and "Limit".
The Terminal group name may be typed immediately or – even simpler – selected it in a drop-down list.
Sometimes, depending on the exact sequence of your clicks, a newly entered Terminal group name will not be available to select. If so, you can click the Cancel button, and then the Algorithm assignments… button once again. The list of Terminal groups will then be updated, and the Terminal group name in question will be available to select.
The figure above shows how a terminal group name (–X5) is selected.

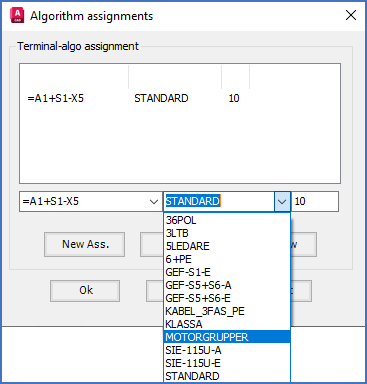

Figure 1349: Selection of Numbering algorithm
In a similar way, the Numbering algorithm can be selected in a drop-down list that contains all available Numbering algorithms. Please refer to the figure above.
Finally, a suitable Limit is specified in the box furthest to the right. The Limit is the total number of terminals in the Terminal group in question.
