Please start the License Manager TOOLS software (LMTOOLS). You will find the cadett ELSA License Manager shortcut under All Programs / cadett ELSA License, as shown in the figure below.

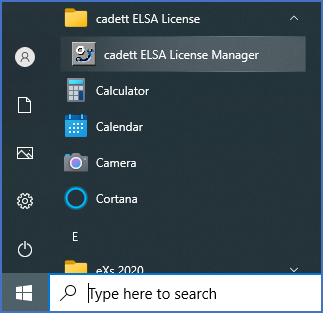

Figure 2370: Shortcut for the “cadett ELSA License Manager”
As an alternative, you can start the manager by double-clicking LMTOOOLS.EXE found in the directory below (if you have installed it in the default location).
C:\cadett_ELSA_license\LMTOOLS
Please start the program. The License Manager Tools program will elevate to administrator, as shown in the figure below.

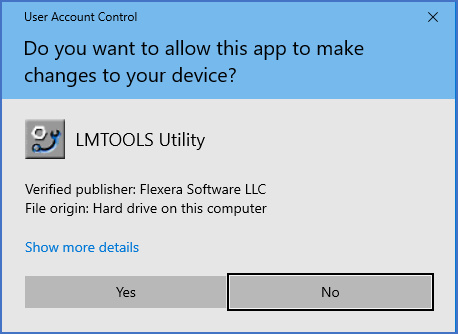

Figure 2371: LMTOOLS elevates to administrator.
After elevation, you will be presented with the dialogue that is shown in the figure below.
Figure 2372: The LMTOOLS main dialogue
Please activate the System Settings tab, as shown in the figure below.

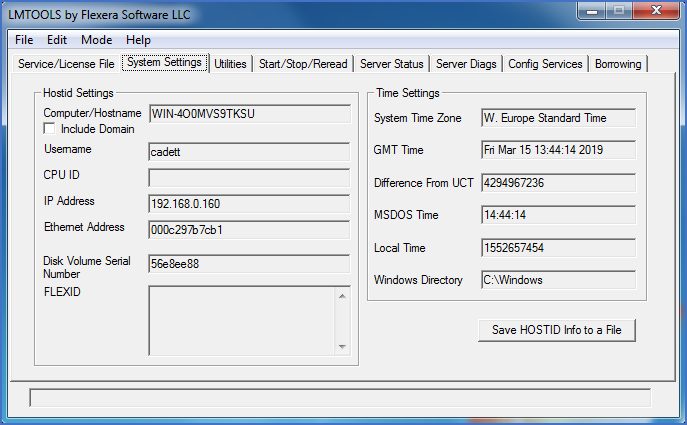

Figure 2373: The “System Settings” tab where you can collect the information needed to request a license file
The Computer/Hostname and the Ethernet Address will soon be needed. Either you can copy them directly from the dialogue box, or you can save the information to a text file using the Save HOSTID Info to a File button.
Please assemble an e-mail with a request of a proper license file. Send that e-mail to:
The following information must be included in the e-mail:
Information item |
Example |
|
|---|---|---|
E-mail address for delivery of the license file |
||
Company name |
Electrical Devices Ltd. |
|
Contact person, first name |
Buzz |
|
Contact person, last name |
Lightyear |
|
Full postal address |
Street/number |
Shortcut street 230 V |
Zip code |
SE-123 45 |
|
City |
Stockholm |
|
Country |
Sweden |
|
MAC address (from LMTOOLS) |
000c297b7cb1 |
|
Host name (from LMTOOLS) |
LICENSE_SERVER_1 |
|
Licenses to include in license file |
155 licenses cadett ELSA Enterprise |
|
License number(s) |
100001-100155 |
|
Please allow for around 48 hours for the license file to be delivered to the specified e-mail address.
The final steps are described in the sub-topics listed below.
