Name

 Previous pageReturn to chapter overviewNext page
Figure 1265:   The "Name" field in the "Ass/Edit series" dialogue

Figure 1265:   The "Name" field in the "Ass/Edit series" dialogue



The Name is used for reference in the Wire-number dialogue, where you can select which series to use, as shown in the figure below.

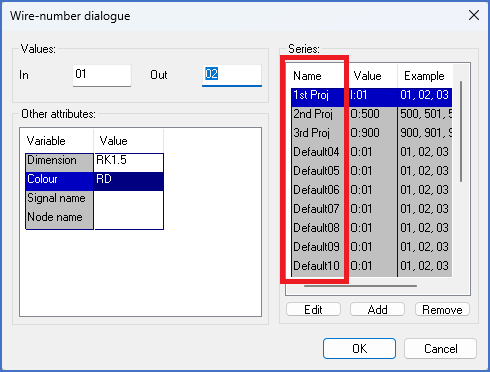

Figure 1266:   The "Name" column in the "Series" section of the "Wire-number dialogue"

Figure 1266:   The "Name" column in the "Series" section of the "Wire-number dialogue"
