<< Click to Display Table of Contents >> Lock all |
![]() ![]() ![]() |
With this command, you lock all the wires that are displayed in the wire-list, given the filter that is currently active.
The Lock all command is selected using a button in the Wire locking section, as shown in the figure below.
Figure 1767: The "Lock all" button will lock all wires that are currently displayed in the wire-list.
When you click this button, all wires that are currently displayed in the wire-list will be locked immediately.
Please note that only wires that are currently visible in the wire-list will be affected. If you for example have activated a filter of some kind, so that only some of the wires of the project are visible, only those wires will be locked.
The fact that the wires have been locked will be shown with great clarity using red lock icons in the Status column, as shown in the figure below.

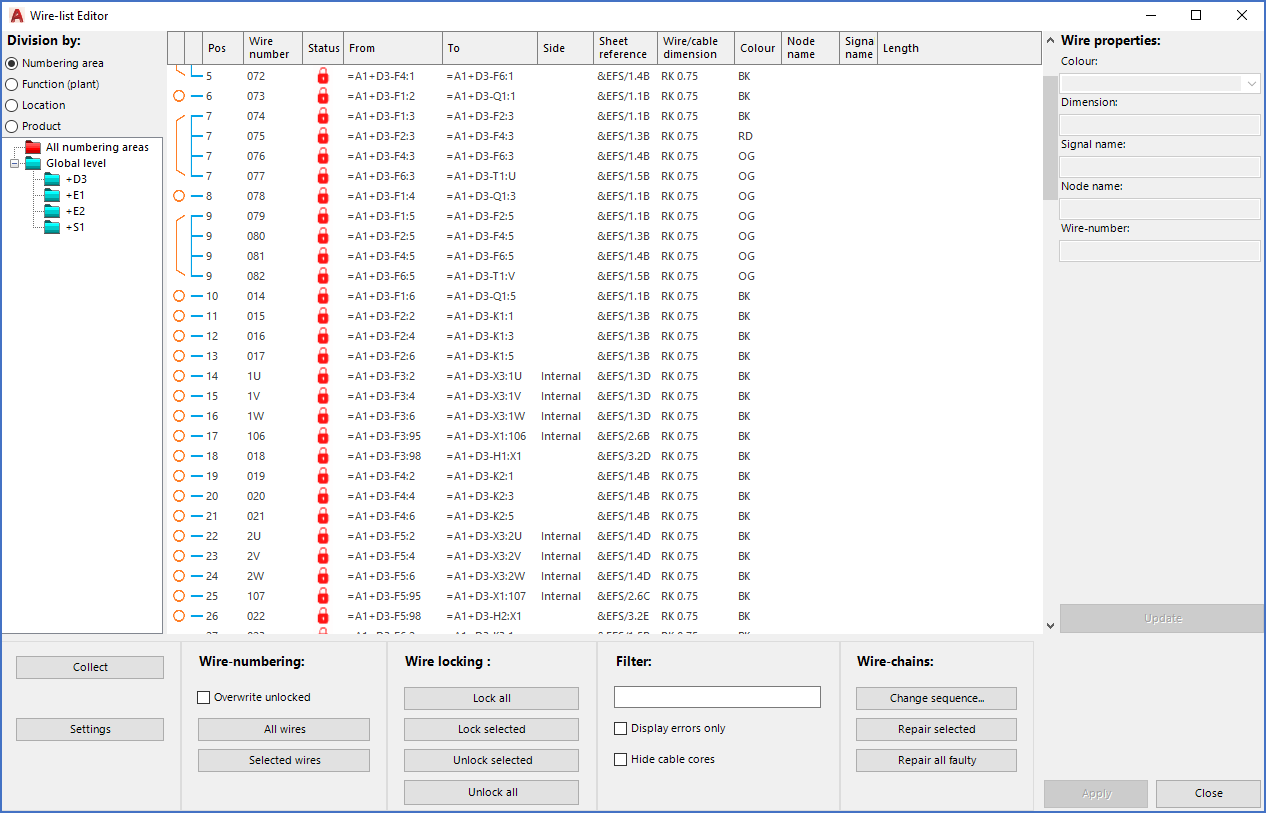

Figure 1768: All wires in the wire-list have been locked.
