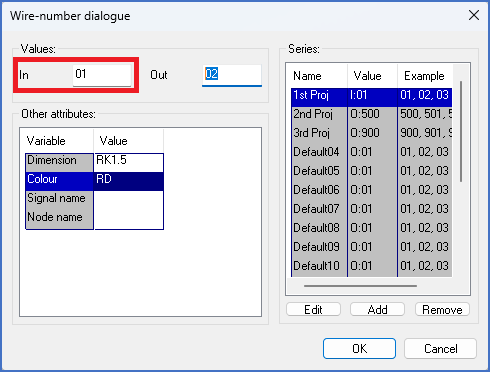

•In the In field, you specify the wire-number of the incoming wire, if there is one. If there is no incoming wire, the In field should be left empty.



The In field is directly connected to a visible attribute. For vertical lines, the attribute is placed to the left of the line. For horizontal lines, it is placed above the line.



Please refer to the parent topic for more details.





Technical detail

The name of the attribute in which the wire-number of the incoming wire is stored is IN_0.
