Change connection sequence in wire-chain

Previous pageReturn to chapter overviewNext page

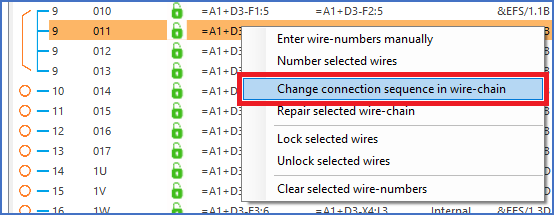

Figure 1821: The "Change connection sequence in wire-chain" command

Figure 1821: The "Change connection sequence in wire-chain" command



You can re-route the wiring order in a sub-node (a wire-chain), for example if the result of the optimisation that cadett ELSA has made is not satisfying. Doing so is called to Change connection sequence in wire-chain.



Please refer to the Change sequence topic where this feature is described.
