The Item designation 3 tab primarily deals with item designations in general, the behaviour in the Drawing environment with respect to them, and specifically terminals and connectors.

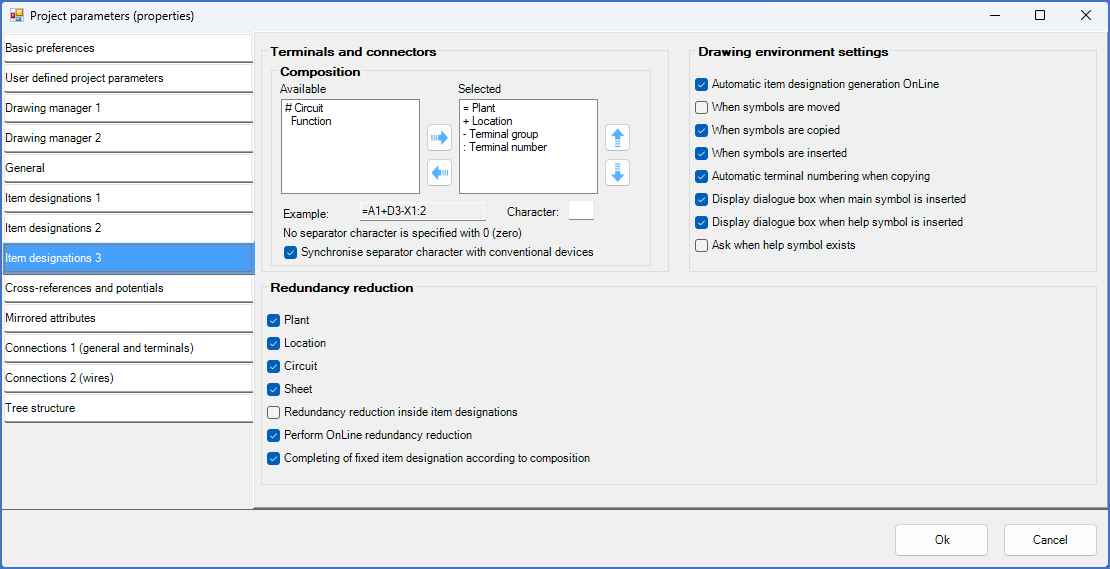

Figure 405: The "Item designations 3" tab
The tab is divided in three main sections, which are listed below and which are described in separate sub-topics reachable using the provided links.
•The first section - Terminals and connectors - contains the definition of the composition of item designations for terminals and connectors.
•The second section - Drawing environment settings - is of major significance in most occasions where an automatic generation of item designations is desired, but also in some other situations in the Drawing environment.
•In the third section - Redundancy reduction - you define how redundancy reduction is performed. This is done with settings that are common for all four types of item designations.
