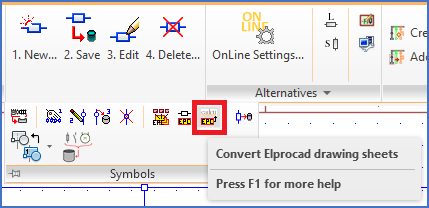

Figure 2308: The "Convert Elprocad drawing sheets" command
The Convert Elprocad drawing sheets command converts all symbols on the current drawing sheet immediately. That is of course much more effective than to convert the symbols one by one, but the disadvantage is of course that you get less control.
Besides converting the symbols, a BLATT block for the sheet number is also created using information from the original SHEET attribute. In this way, the OnLine Engine of cadett ELSA will be able to recognise the sheet numbers and thereby update cross-references correctly.
