Resource category 0 contains standard fixed detached contact mirrors.



•"Standard" means that they cover commonly available standard products for relays and contactors.



•"Fixed" means that the connection point numbers are not editable. Please note that contact mirrors may be made dynamic as an alternative, which means that the connection point numbers are editable. The set of contacts is however fixed even in a dynamic contact mirror, as opposed to a hyper dynamic contact mirror, where everything is editable.

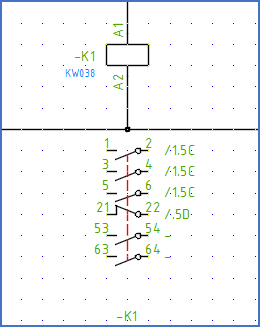

•"Detached" means that these contact mirrors are designed to be placed separated from the corresponding main symbol. The insertion point is placed so that you can insert the contact mirror where the vertical and horizontal lines intersect. Please refer to the figure above.
