The symbol version is stored as an integer calculated using binary weighting.
Please refer to the figure below.
Figure 1279: All version options presented in a clear and comprehensive way
Each version is associated with a binary weight, according to the table below.
Version |
Binary weight |
|---|---|
A |
1 |
B |
2 |
C |
4 |
D |
8 |
E |
16 |
F |
32 |
G |
64 |
H |
128 |
The integer associated with combined versions is calculated by summarising the integers of the included versions. Please refer to the table below, which shows all combinations.
Version |
Binary weight |
|---|---|
ABCDEFGH |
255 |
ACEG |
85 |
BDFH |
170 |
AE |
17 |
BF |
34 |
CG |
68 |
DH |
136 |

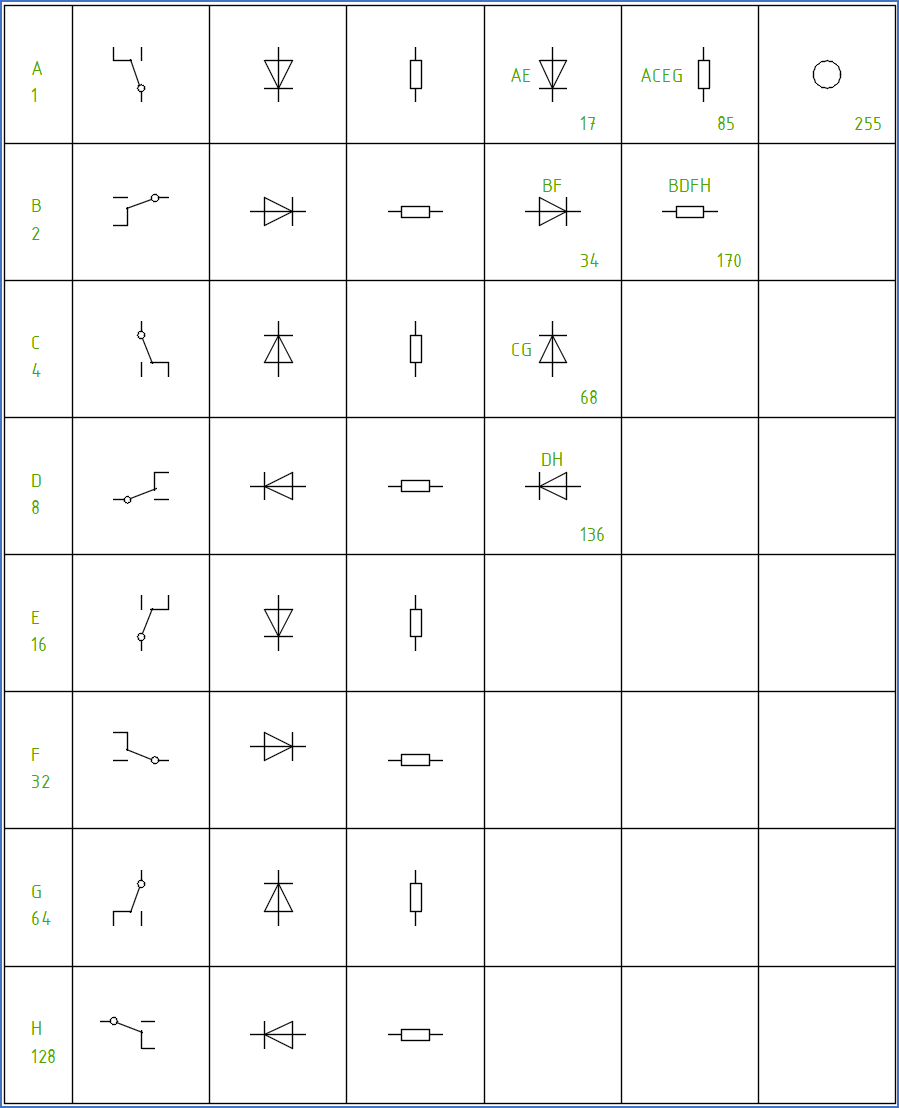

The figure below gives a complete overview.
Figure 1280: Complete overview
